Digital Multimeter Constant 90F

Update Terakhir

01 / 12 / 2019

Min. Pembelian

1 Unit

Dilihat Sebanyak

34 kali

Harga

CALL

Kami merupakan perusahaan spesialis di bidang instrument mechanical electrical untuk produk Constant Instruments dan IRtek International ( Australia) . Produk Constant meliputi Avometer, Calibrator, Clamp Ampere Meter, Thermometer, dan Mechanical Electrical Tester lainnya, sedangkan produk IRtek meliputi Spot Infrare

Perhatian !

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi aman yang kami sarankan.

Deskripsi Produk Deskripsi

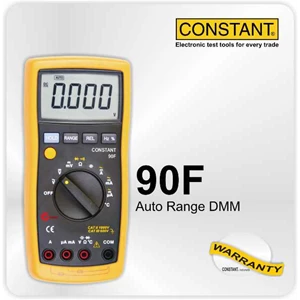

Detail Digital Multimeter Constant 90F

GARANSI 1 TAHUN

Digital Multimeter Auto Range yang ada proteksinya dengan varistor dan PTC

Spesifikasi :

FUNCTION	RANGE	ACCURACY
AC Current	400µ/4m/40m/400m/4/10A	±(1.5% rdg ± 3dgt)
AC Voltage	400mV	±(3.0% rdg + 3 dgt)
AC Voltage	4/40/400/1000V	±(1.0% rdg + 3 dgt)
DC Current	400µ/4m/40m/400m/4/10A	±(1.5% rdg + 3 dgt)
DC Voltage	400mV	±(1.0% rdg ± 10 dgt)
DC Voltage	4/40/400/1000V	±(0.5% rdg + 3 dgt)
Input Impedance	>5MΩ (ACV) and >10MΩ (DCV)
Resistance	400.0Ω	±(0.5% rdg + 3 dgt)
	4.00k/40.0k/400.0k/4.000MΩ	±(0.5% rdg + 2 dgt)
	40.00MΩ	±(1.5% rdg + 3 dgt)
Capacitance	50nF (<10nF)	±(5.0%[rdg-50dgt] +10 dgt)
	50nF (≥10nF)	±(3.0% rdg + 10 dgt)
	500n/5µ/50µ/100µF	±(3.0% rdg + 5 dgt)
Frequency	50.00/500.0/5.000k/50k/100kHz	±(0.1% rdg + 3 dgt)
Temperature	-55 ~ 0°C	±(9.0% rdg + 2°C)
	1 ~ 400°C	±(2.0% rdg + 1°C)
	401 ~ 1000°C	±2.0% rdg
Diode Test	Display forward voltage drop of the diode
Continuity	If continuity exists (≤ 75Ω), built in buzzer will sound
Display	3¾ digits
Indication	Low battery, over range, negative polarity
Battery / Fuse	3 x 1.5V (AAA size)
Size / Weight	185 x 87 x 53mm / ±360g (including battery)
Standard Accessories	Test Leads, batteries, K type thermocouple, instruction manual
Standard Accessories	warranty card, certificate of product conformance

FUNCTION	RANGE	ACCURACY
AC Current	400µ/4m/40m/400m/4/10A	±(1.5% rdg ± 3dgt)
AC Voltage	400mV	±(3.0% rdg + 3 dgt)
AC Voltage	4/40/400/1000V	±(1.0% rdg + 3 dgt)
DC Current	400µ/4m/40m/400m/4/10A	±(1.5% rdg + 3 dgt)
DC Voltage	400mV	±(1.0% rdg ± 10 dgt)
DC Voltage	4/40/400/1000V	±(0.5% rdg + 3 dgt)
Input Impedance	>5MΩ (ACV) and >10MΩ (DCV)
Resistance	400.0Ω	±(0.5% rdg + 3 dgt)
	4.00k/40.0k/400.0k/4.000MΩ	±(0.5% rdg + 2 dgt)
	40.00MΩ	±(1.5% rdg + 3 dgt)
Capacitance	50nF (<10nF)	±(5.0%[rdg-50dgt] +10 dgt)
	50nF (≥10nF)	±(3.0% rdg + 10 dgt)
	500n/5µ/50µ/100µF	±(3.0% rdg + 5 dgt)
Frequency	50.00/500.0/5.000k/50k/100kHz	±(0.1% rdg + 3 dgt)
Temperature	-55 ~ 0°C	±(9.0% rdg + 2°C)
	1 ~ 400°C	±(2.0% rdg + 1°C)
	401 ~ 1000°C	±2.0% rdg
Diode Test	Display forward voltage drop of the diode
Continuity	If continuity exists (≤ 75Ω), built in buzzer will sound
Display	3¾ digits
Indication	Low battery, over range, negative polarity
Battery / Fuse	3 x 1.5V (AAA size)
Size / Weight	185 x 87 x 53mm / ±360g (including battery)
Standard Accessories	Test Leads, batteries, K type thermocouple, instruction manual
Standard Accessories	warranty card, certificate of product conformance
